Vulcanized Boltdown Leveler

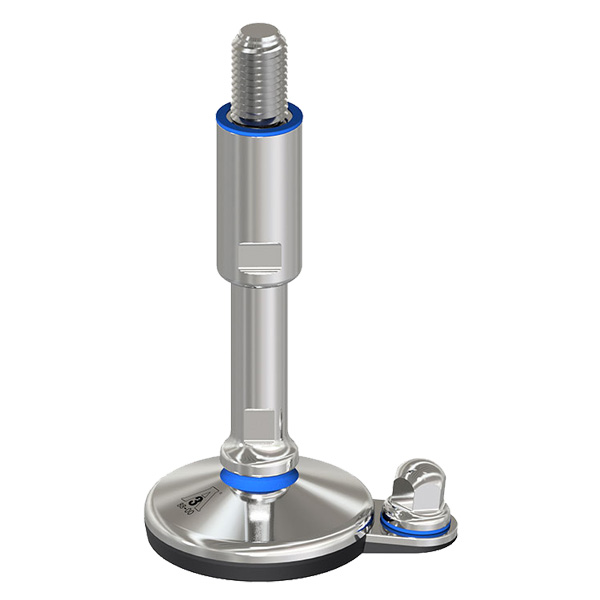

Vlier vulcanized boltdown leveler devices are hygienic leveling mounts constructed from AISI 304 stainless steel with a vulcanized NBR 85 rubber pad.

They have similar features as our Vulcanized Leveler but have a boltdown feature.  This allows to firmly lock your equipment in place to better secure in dynamic environments and applications.

The pad is abrasion resistant and highly elastic—protecting the floor surface beneath the base and providing a positive seal from dirt and other contaminants. The device also features an external top gasket to enable machine mounting without wasted space and an internal bottom gasket to further defend from dirt intrusion, which completes the hygienic sealing system. Our vulcanized boltdown leveler system is 3-A Sanitary Standard approved.

Typical Uses

  • Pharmaceutical industry
  • Meat & poultry processing & packaging
  • Dairy processing & packaging
  • Medical equipment
  • Cosmetic industry
  • Food & beverage industries

Special Features

  • Vulcanized FDA NBR 85 shore rubber pad
  • 3-A Sanitary Standard approved
  • External top gasket, internal bottom gasket for the hygienic sealing system
  • Fairly articulated half-threadless hygienic stem or stud
  • Stainless steel thread-covering sleeve
  • No exposed threads
  • Boltdown feature
Download the PDF
Hygienic-Machine-Foot-3A-Vulcanized-Bolt-Down
Hygienic-Machine-Foot-3A-Vulcanized-Bolt-Down
ANSI (Inch/American) Tables
Metric Tables
CAD Library

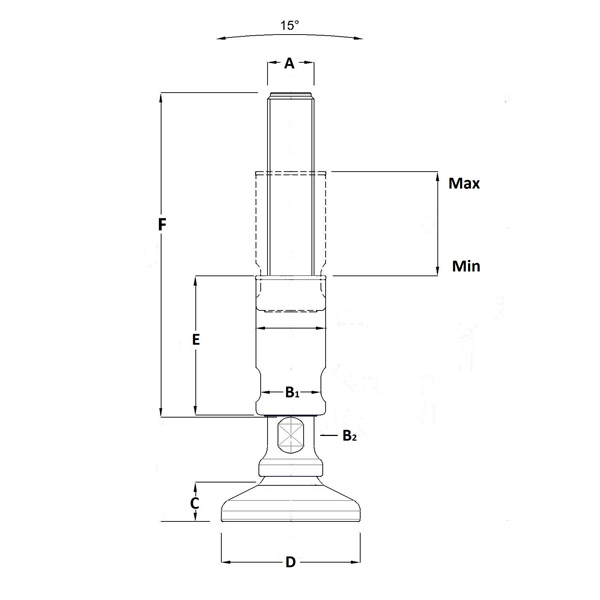

Hygienic Leveling Mounts Vulcanized Boltdown Leveler

Part No.Max LoadMax & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. Stud LengthG Dim. hole distance from centerH Dim Hole SizeROHSCAD
VHL160F56204.6 - 6.385/8 - 117/81.13.942.365.512.720.59VHL160F
VHL164F56204.6 - 6.383/4 - 1011.13.942.365.512.720.59VHL164F
VHL168F56204.6 - 6.381 - 81 - 1/41.13.942.365.512.720.59VHL168F
VHL174F56205.59 - 8.151-1/4 - 71 - 1/21.13.943.347.282.720.59VHL174F

Hygienic Leveling Mounts Vulcanized Boltdown Leveler

Part No.Max Load
(Newton)		Max & Min Working HeightA Dim. ThreadB Dim. HexC Dim. Pad HeightD Dim. Pad DiameterE Dim. Bushing lengthF Dim. Stud LengthG Dim. hole distance from centerH Dim Hole SizeROHSCAD
VHLM160F20,000117 to 16216 X 2.02028100601406915VHLM160F
VHLM164F20,000117 to 16220 X 2.52828100601406915VHLM164F
VHLM168F20,000117 to 16224 X 3.03028100601406915VHLM168F
VHLM174F20,000142 -20730 X 3.53628100851856915VHLM174F
