Vlier Press-Fit Shoulderless Knurled Plungers

PRESS-FIT PLUNGERS - Shoulderless Knurled Steel & Stainless Steel

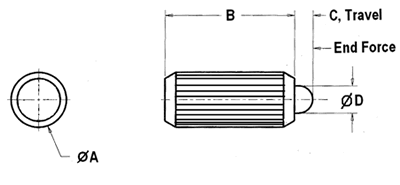

Stainless Steel Spring Plunger Diagram of Stainless Steel Spring Plunger

Press-Fit Shoulderless Knureled Steel and Stainless Steel Plungers
Vlier Press-Fit Knurled Steel plungers are designed for simple, easy installation into wood, soft plastic or aluminum. Ideal where a threaded plunger is impractical or when threaded adjustments are not required. Nylon nose resists marring.

Special Features

Simple Installation
No thread adjustment
Nylon nose resists marring

Stainless steel resists corrosion
Stainless steel withstands high temperatures

Shoulderless Knurled Press-Fit Plungers - ANSI
Part No.		End Force, Lbs.		Knurl O.D. A in.	Body Length B in.	Proj. C in.	Plunger Dia. D in.
Steel	Stainless Steel	Init.	Final	Knurl O.D. A in.	Body Length B in.	Proj. C in.	Plunger Dia. D in.
PFPK51	SPFPK51	0.75	2.0	0.215	0.500	0.094	0.121
PFPK52	SPFPK52	1.5	4.5	0.215	0.500	0.094	0.121
PFPK53	SPFPK53	1.25	3.0	0.250	0.580	0.125	0.168
PFPK54	SPFPK54	2.5	6.0	0.250	0.580	0.125	0.168
PFPK57	SPFPK57	2.5	7.0	0.384	0.900	0.187	0.234
PFPK58	SPFPK58	5.0	14.0	0.384	0.900	0.187	0.234
PFPK59	SPFPK59	4.0	9.0	0.509	1.250	0.250	0.332
PFPK60	SPFPK60	8.0	18.0	0.509	1.250	0.250	0.332

Shoulderless Knurled Press-Fit Plungers with Nylon Nose - ANSI
Part No.		End Force, Lbs.		Knurl O.D. A in.	Body Length B in.	Proj. C in.	Plunger Dia. D in.
Steel	Stainless Steel	Init.	Final	Knurl O.D. A in.	Body Length B in.	Proj. C in.	Plunger Dia. D in.
DPFPK51	DSPFPK51	0.75	2.0	0.215	0.500	0.094	0.121
DPFPK52	DSPFPK52	1.5	4.5	0.215	0.500	0.094	0.121
DPFPK53	DSPFPK53	1.25	3.0	0.250	0.580	0.125	0.168
DPFPK54	DSPFPK54	2.5	6.0	0.250	0.580	0.125	0.168
DPFPK57	DSPFPK57	2.5	7.0	0.384	0.900	0.187	0.234
DPFPK58	DSPFPK58	5.0	14.0	0.384	0.900	0.187	0.234
DPFPK59	DSPFPK59	4.0	9.0	0.509	1.250	0.250	0.332
DPFPK60	DSPFPK60	8.0	18.0	0.509	1.250	0.250	0.332
